Parabolic Solar Cooker
Harnessing the Power of Concentrated Sunlight

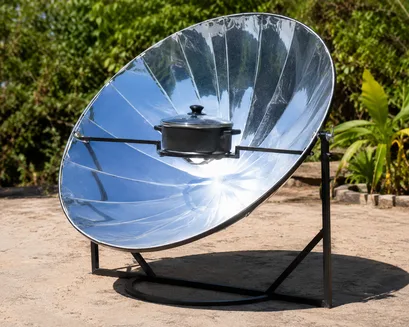

A parabolic solar cooker is one of the most powerful forms of solar cooking.
Unlike simple panel cookers or box ovens, a parabolic cooker uses a curved reflective surface to concentrate sunlight into a single focal point, generating extremely high temperatures for fast cooking.
These systems can:
They are excellent demonstrations of renewable energy and practical climate resilience technologies.
A parabolic solar cooker is one of the most powerful forms of solar cooking.
Unlike simple panel cookers or box ovens, a parabolic cooker uses a curved reflective surface to concentrate sunlight into a single focal point, generating extremely high temperatures for fast cooking.
These systems can:
- boil water quickly
- fry foods
- cook rice and vegetables
- heat large pots
- pasteurize water
- reduce firewood use
- provide smoke-free cooking
They are excellent demonstrations of renewable energy and practical climate resilience technologies.
How a Parabolic Solar Cooker Works
The curved dish reflects sunlight inward toward a central focal point.
At this focal point:
- temperatures can exceed 400°F–700°F
- heat becomes concentrated enough for rapid cooking
- small amounts of sunlight become intense thermal energy
A cooking pot is suspended directly above the focal point where the concentrated heat is strongest.
Best Uses
Excellent For
- boiling water
- frying eggs
- stir-frying vegetables
- cooking rice
- soups
- heating oils
- fast cooking demonstrations
Especially Useful In
- sunny climates
- emergency cooking
- off-grid communities
- schools and demonstration centers
- climate resilience projects
Important Safety Notes
Parabolic cookers become VERY hot.
Always:
- supervise children
- wear gloves when adjusting cookware
- never look directly at reflected sunlight
- avoid placing hands near focal point
- secure cooker against strong wind
Approximate Temperatures
Typical Cooking Temperatures
- 400°F–700°F
- (200°C–370°C)
- boil water rapidly
- fry foods
- cook with cast iron pans
- sterilize water
- ignite dry materials if left unattended
Materials Needed
Reflective Dish
Options include:
- old satellite dish
- metal dish frame
- welded steel frame
- bent plywood ribs
- bamboo frame structure
Reflective SurfaceUse:
- reflective aluminum sheet
- mirror-finish aluminum
- reflective tape
- mirrored film
- small mirror tiles (optional)
Support Structure
- metal pipe
- wood frame
- adjustable stand
- bolts and screws
Cooking Area
- metal rod supports
- grill support
- pot holder ring
Step-by-Step Instructions
Step 1 — Build the Parabolic Frame
The cooker needs a curved dish shape.
Option 1 — Reuse a Satellite Dish
This is the easiest method.
Old satellite dishes already have the correct parabolic curve.
Simply:
- clean the surface
- reinforce weak areas
- attach reflective material
Option 2 — Build a Dish
Create curved ribs from:
- plywood
- bamboo
- metal rods
Arrange them evenly into a bowl-shaped structure.
The smoother and more accurate the curve:
- the better the heat concentration
- the higher the cooking temperatures
Step 2 — Add Reflective Surface
Cover the entire dish with reflective material.
Best options:
- mirror-finish aluminum sheet
- reflective aluminum tape
- reflective emergency blanket film
The surface should be:
- smooth
- wrinkle-free
- highly reflective
Step 3 — Find the Focal Point
Place the cooker in direct sunlight.
Hold a piece of cardboard above the dish and slowly move it closer or farther away.
You will find a small, extremely bright hot spot where the sunlight concentrates.
This is the focal point.
Mark this location carefully.
Step 4 — Build Pot Support
Install a metal support ring or rods above the focal point.
The cooking pot should sit:
- directly in the concentrated sunlight
- stable and secure
- slightly above the brightest point
The pot should NOT block too much incoming sunlight.
Step 5 — Create Adjustable Mount
The cooker must track the sun.
Mount the dish on:
- a rotating base
- adjustable tilt frame
- pivoting support
Step 6 — Use Dark Cookware
Dark cookware absorbs heat best.
Ideal cookware:
- black pots
- cast iron
- dark steel cookware
Step 7 — Begin Cooking
Aim the cooker directly at the sun.
You should quickly see:
- steam
- sizzling
- rapid heating
Why Solar Cooking Matters
In many parts of the world:
- firewood collection damages forests
- charcoal contributes to pollution
- smoke harms respiratory health
- fuel costs create hardship
Solar cooking helps reduce:
- smoke pollution
- fuel use
- carbon emissions
- deforestation
while promoting:
- clean energy
- resilience
- sustainability
- self-reliance
Educational Value
Parabolic solar cookers are excellent educational tools because they demonstrate:
- solar energy
- reflection
- heat concentration
- renewable technology
- sustainable living
Future Workshop Opportunities
Warm Heart plans to expand this project through:
Future pages will include:
Warm Heart plans to expand this project through:
- hands-on workshops
- community demonstrations
- school visits
- farmer training
- emergency preparedness education
Future pages will include:
- detailed construction diagrams
- material alternatives
- cooking demonstrations
- safety training
- classroom lesson plans
